A tapping machine is a specialized machine tool used to create internal threads in pre-drilled holes using a tapping tool. Unlike manual tapping, tapping machines provide :

• Consistent thread depth and pitch
• Higher production speed
• Reduced tool breakage
• Improved operator safety and comfort

Modern tapping machines are available in various configurations such as manual, semi-automatic, automatic, pneumatic, servo-driven, vertical, and articulated arm types. Among these, flexible arm tapping machines and vertical tapping machines are two of the most commonly used in industrial applications.

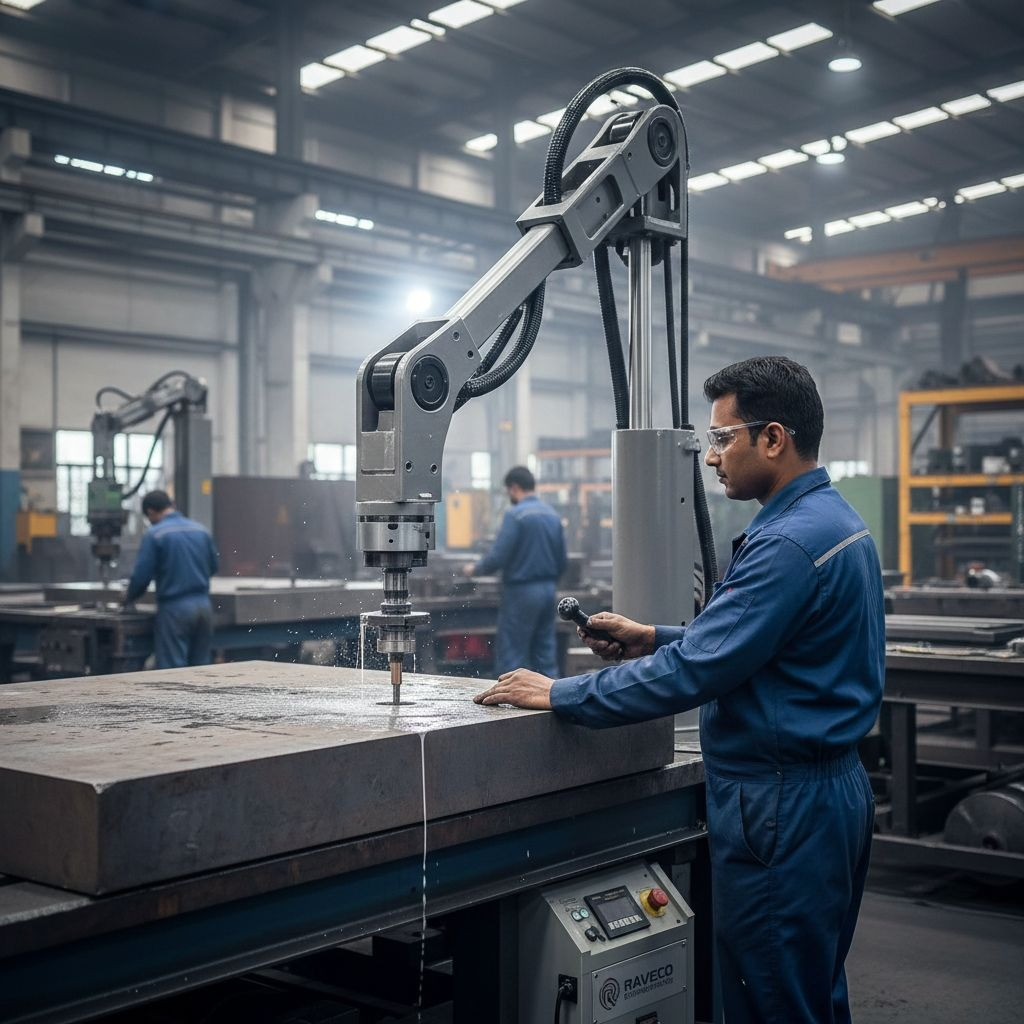

What Is a Flexible Arm Tapping Machine ?

A Flexible Arm Tapping Machine, also known as an Articulated Arm Tapping Machine, features a multi-joint articulated arm that supports the tapping head. This arm allows the operator to move the tapping unit freely in multiple directions, enabling tapping at different positions without moving the workpiece.

This design makes the flexible arm tapping machine ideal for large, heavy, or fixed components where repositioning the job is difficult or time-consuming.

Raveco Engineering specializes in manufacturing high-performance articulated arm tapping machines that are widely used in automotive, fabrication, and heavy engineering industries. Learn more about their tapping solutions here :

👉 Raveco Machines

Key Features of Flexible Arm Tapping Machines

• Articulated arm with multi-directional movement
• Pneumatic or electric drive options
• High flexibility and wide working radius
• Ergonomic design with reduced operator fatigue
• Suitable for large and heavy workpieces
• Quick setup and easy operation

What Is a Vertical Tapping Machine ?

A Vertical Tapping Machine is a conventional machine where the spindle moves vertically to perform tapping operations on a workpiece placed on a fixed table or fixture. The job must be positioned precisely under the spindle, and the tapping operation is carried out in a vertical downward motion.

Key Features of Vertical Tapping Machines

• Vertical spindle movement
• Rigid and stable machine structure
• High accuracy and repeatability
• Suitable for batch and mass production
• Available in manual, semi-automatic, and automatic models

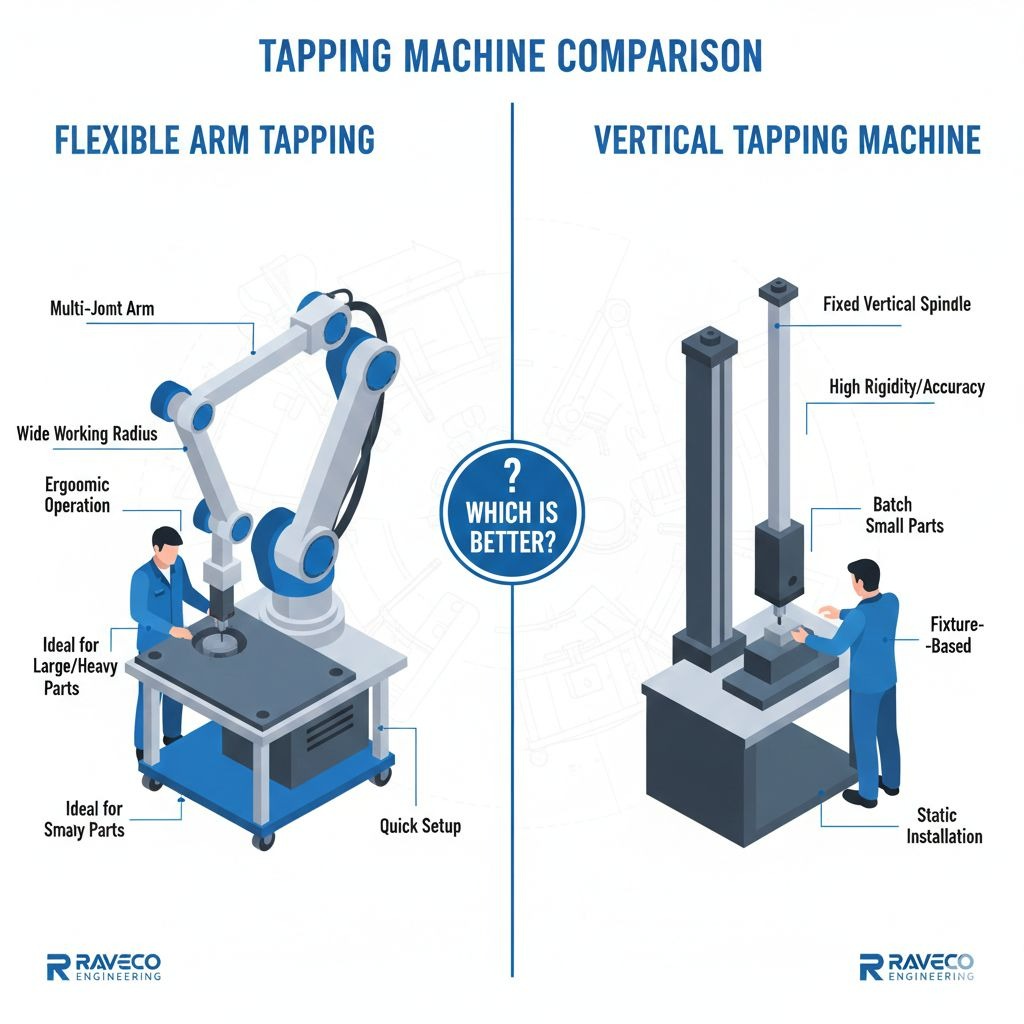

Design and Structural Differences

The fundamental difference between these two machines lies in their design philosophy.

A flexible arm tapping machine uses an articulated arm with multiple joints, allowing the tapping head to move horizontally, vertically, and angularly. This makes it extremely adaptable for complex job profiles and large components.

In contrast, a vertical tapping machine has a fixed vertical column and spindle. The workpiece must be moved and aligned carefully under the spindle, and the machine has limited movement flexibility.

This design difference affects almost every performance parameter, including flexibility, setup time, ergonomics, and application range.

Flexibility and Working Reach

Flexibility is one of the most important criteria when selecting a tapping machine.

Flexible Arm Tapping Machine

• Can reach multiple holes without moving the workpiece
• Ideal for large frames, fabricated structures, and heavy plates
• Allows tapping at different angles and orientations
• Minimizes job handling and setup time

Vertical Tapping Machine

• Limited to vertical tapping only
• Workpiece must be repositioned for multiple holes
• Not suitable for very large or fixed components

For workshops handling heavy fabrication and large assemblies, articulated arm tapping machines from Raveco Engineering offer a major productivity advantage. You can explore their articulated arm tapping range here :

👉 Raveco Machines

Accuracy and Thread Quality

Both machines are capable of producing high-quality threads when properly selected and maintained.

Vertical tapping machines generally provide excellent rigidity, which helps maintain consistent perpendicularity and thread accuracy, especially in mass production environments.

Modern flexible arm tapping machines, especially servo and electric models manufactured by Raveco Engineering, are equipped with :

• Torque control systems
• Automatic depth control
• Reverse rotation protection

These advanced features ensure precise thread cutting and reduce the risk of tap breakage, even in demanding applications.

For most industrial requirements, both machines deliver excellent accuracy when matched correctly with the application.

Productivity and Cycle Time

Productivity depends largely on setup time, job handling, and tapping speed.

Flexible Arm Tapping Machine

• Faster setup and positioning
• Minimal workpiece movement
• Excellent for multi-hole tapping on large jobs
• Ideal for small batch and custom production

Vertical Tapping Machine

• High tapping speed for repetitive operations
• Excellent for continuous mass production
• Suitable for automated and fixture-based systems

If your production involves frequent job changes and large components, flexible arm tapping machines offer higher overall efficiency. For high-volume repetitive work, vertical tapping machines remain highly effective.

Ease of Operation and Operator Comfort

Operator comfort plays a major role in long-term productivity and quality.

Flexible arm tapping machines are ergonomically designed. The articulated arm supports the weight of the tapping head, allowing the operator to guide the tool smoothly with minimal effort. This reduces physical strain and operator fatigue.

Vertical tapping machines often require repeated loading and unloading of components, especially in manual models. Handling heavier workpieces can increase fatigue and slow down production.

Raveco Engineering focuses strongly on ergonomic machine design to improve safety and operator efficiency. For technical guidance, you can contact their team here :

👉 Raveco Machines

Space Utilization and Installation

Workshop layout and space availability are critical considerations.

Flexible arm tapping machines have a compact footprint and can be mounted on :

• Workbenches
• Floor stands
• Machine tables

They can also be relocated easily within the workshop.

Vertical tapping machines require dedicated floor space, proper foundation, and stable installation. Once installed, they are less mobile.

For small and medium workshops, flexible arm tapping machines provide better space efficiency and layout flexibility.

Applications and Industry Use

Applications of Flexible Arm Tapping Machines

• Heavy fabrication and structural frames
• Automotive chassis and body assemblies
• Large castings and steel plates
• Sheet metal fabrication
• Maintenance and repair operations

Applications of Vertical Tapping Machines

• Precision components
• Small to medium sized parts
• High-volume production lines
• Fixture-based tapping operations

Raveco Engineering supplies tapping machines across diverse industries, supporting manufacturers with reliable and high-performance import-substitute solutions.

Cost and Investment Considerations

Initial cost should always be evaluated along with long-term productivity and flexibility.

Flexible arm tapping machines may involve a slightly higher initial investment, but they deliver excellent value through :

• Reduced setup time
• Lower job handling cost
• Higher application versatility

Vertical tapping machines often have lower base prices, but additional costs may arise from fixtures, automation systems, and installation requirements.

Choosing the right machine based on production needs ensures better return on investment.

Maintenance and Reliability

Both machine types require routine maintenance for long service life.

Flexible arm tapping machines require regular inspection of articulated joints and lubrication of moving parts.

Vertical tapping machines require periodic checking of spindle bearings, guides, and drive systems.

Raveco Engineering manufactures robust, low-maintenance tapping machines with strong quality control and dependable after-sales support, helping customers achieve long-term reliability.

Which Is Better: Flexible Arm or Vertical Tapping Machine ?

There is no single best choice for all applications. The right machine depends on your production environment.

Choose a Flexible Arm Tapping Machine if :

• You handle large or heavy components
• You need maximum flexibility and reach
• Your production involves frequent job changes
• You want ergonomic and mobile tapping solutions

Choose a Vertical Tapping Machine if :

• You have high-volume repetitive production
• Your components are small to medium sized
• You require high rigidity and fixture-based accuracy
• You plan to integrate automation systems

Many modern workshops use both machines to achieve optimal productivity across different applications.

Why Choose Raveco Engineering for Tapping Machines ?

Raveco Engineering is a trusted name in tapping machine manufacturing, known for delivering high-quality, custom-engineered, and import-substitute solutions.

Key Advantages of Raveco Engineering :

• Leading manufacturer of articulated arm tapping machines
• Import substitute machines supporting Make in India
• Custom-engineered tapping solutions
• High quality production and strict quality control
• Excellent customer satisfaction and service support

👉 Explore their tapping machine range here :

Raveco Machines

👉 For product inquiries and technical assistance, contact the team directly :

Contact

Conclusion

Both flexible arm tapping machines and vertical tapping machines play an essential role in modern manufacturing. While vertical tapping machines excel in rigidity and mass production, flexible arm tapping machines stand out for their versatility, mobility, and ergonomic design.

By carefully analyzing your production volume, component size, and workflow requirements, you can select the tapping solution that delivers maximum efficiency and long-term profitability.

With its strong focus on innovation, quality, and customer satisfaction, Raveco Engineering remains an ideal partner for advanced tapping solutions that support India’s growing manufacturing industry.

FAQs

1. What is the main difference between a flexible arm tapping machine and a vertical tapping machine ?

The main difference lies in flexibility and design. A flexible arm tapping machine offers multi-directional movement and is ideal for large or fixed workpieces, while a vertical tapping machine has a fixed vertical spindle and is better suited for repetitive, high-volume production of small to medium components.

2. Which tapping machine is better for large and heavy components ?

A flexible arm tapping machine is better for large and heavy components because it allows tapping without moving the workpiece and provides a wide working radius with easy positioning.

3. Are flexible arm tapping machines as accurate as vertical tapping machines ?

Yes, modern flexible arm tapping machines equipped with torque control and depth control systems offer excellent accuracy and thread quality, comparable to vertical tapping machines for most industrial applications.

4. Which tapping machine is more suitable for mass production ?

Vertical tapping machines are more suitable for mass production because of their rigid structure, high repeatability, and compatibility with automation and fixture-based production systems.

5. Why should I choose Raveco Engineering for tapping machines ?

Raveco Engineering offers high-quality, custom-engineered, import-substitute tapping machines with strong quality control, ergonomic design, and reliable after-sales support, making them a trusted tapping machine manufacturer in India.
